WhatsApp, SMS & Voice Bot
Pick Providers

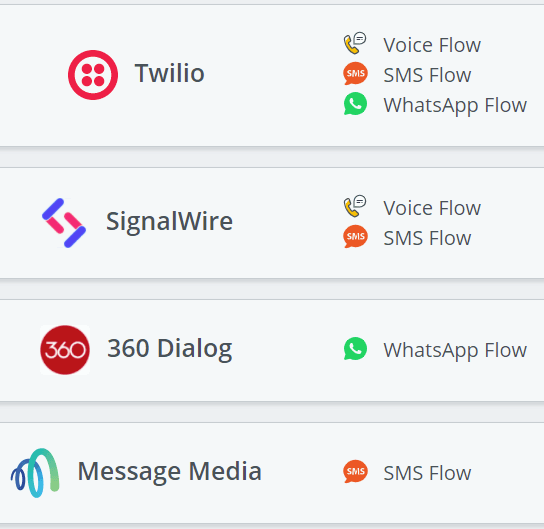

As follow are the providers we currently work with. Different providers support different bots. Choose your provider according to your needs. Create an account with them and pick your number.

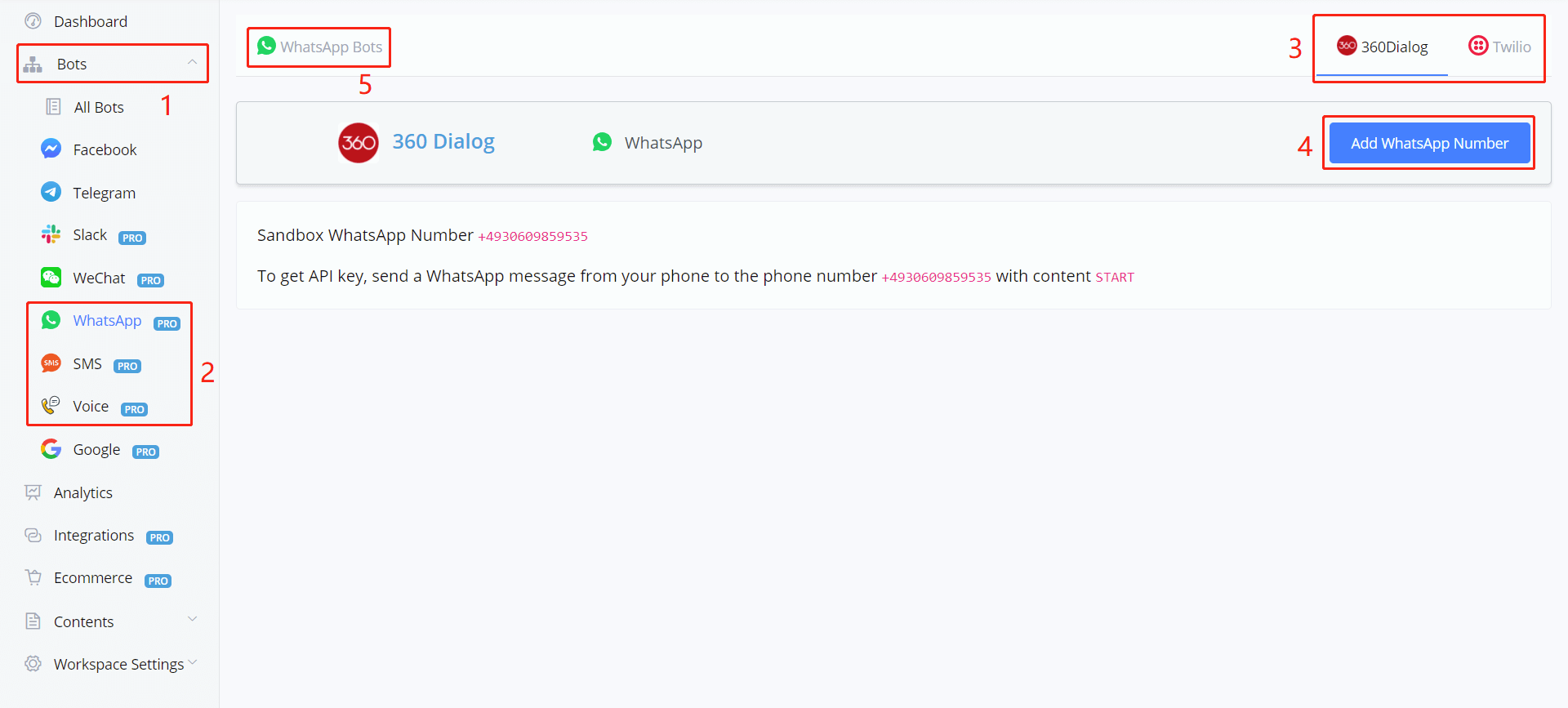

OCP has put links for you to jump to their official websites. You can either access them in the according channel (see screenshot above) or on the "Integration" page (see screenshot below).
Follow the steps in the above screenshots to connect to the provider and add numbers.
Sign Up & Get Numbers

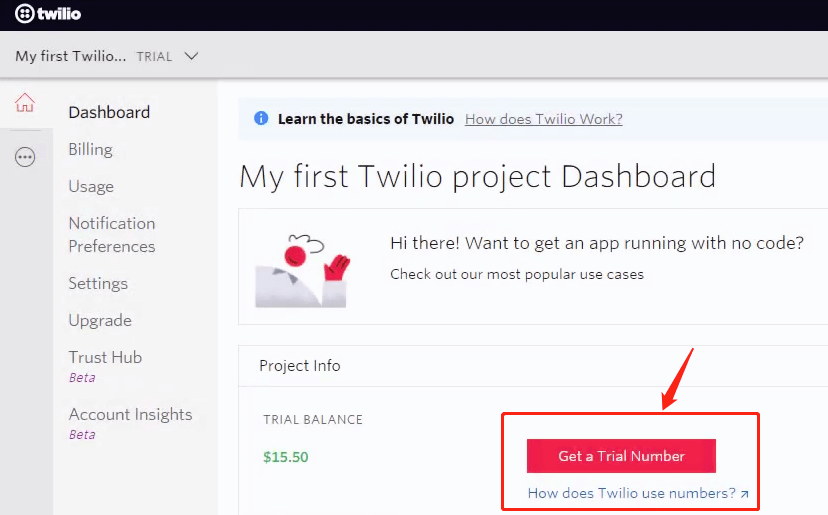

Take Twilio as an example. On their website, sign up, login in, then you will get to your dashboard:
Click "Get a Trail Number".
In the pop-up window, the number is shown on the upper left side, click "Choose this Number" or "Search for a different number". Then you have your own number!
Connect to Provider

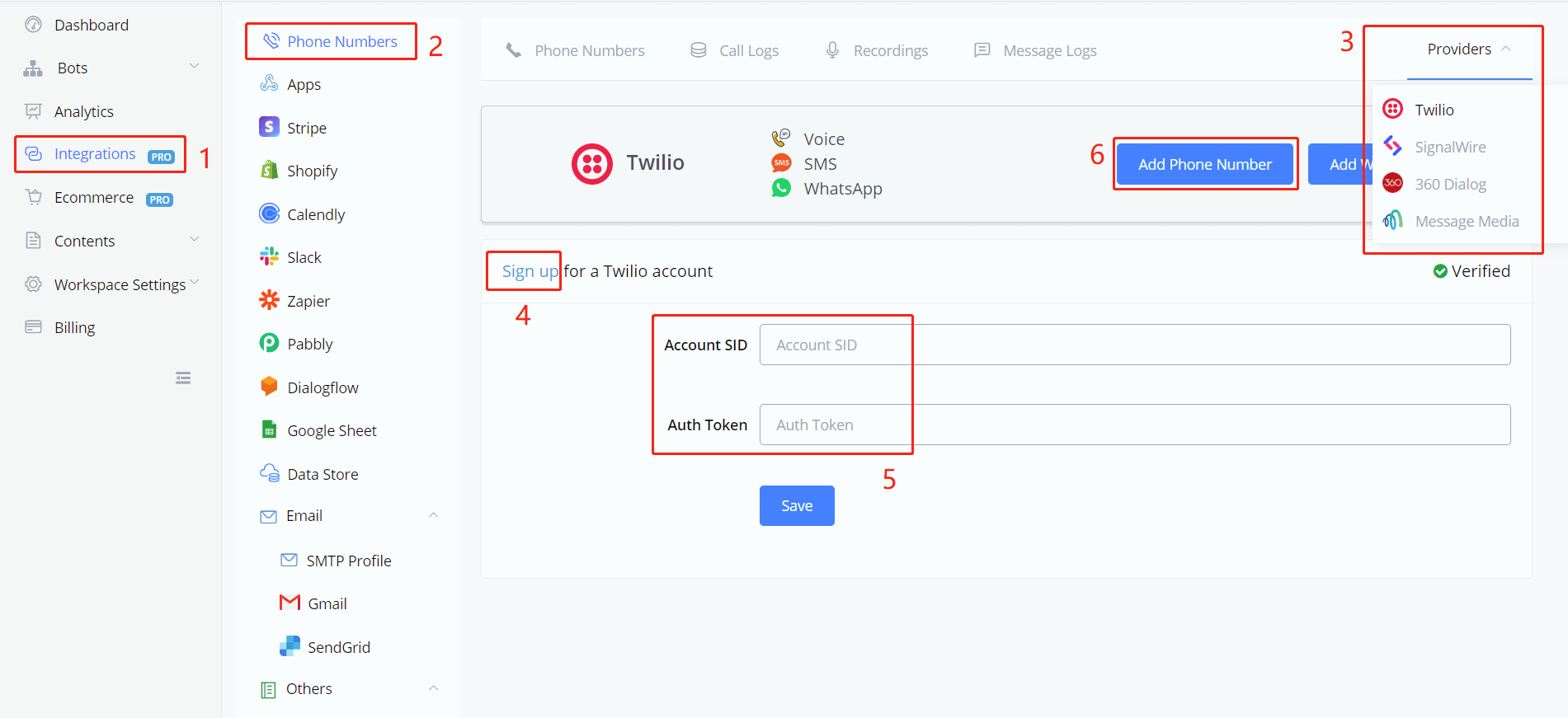

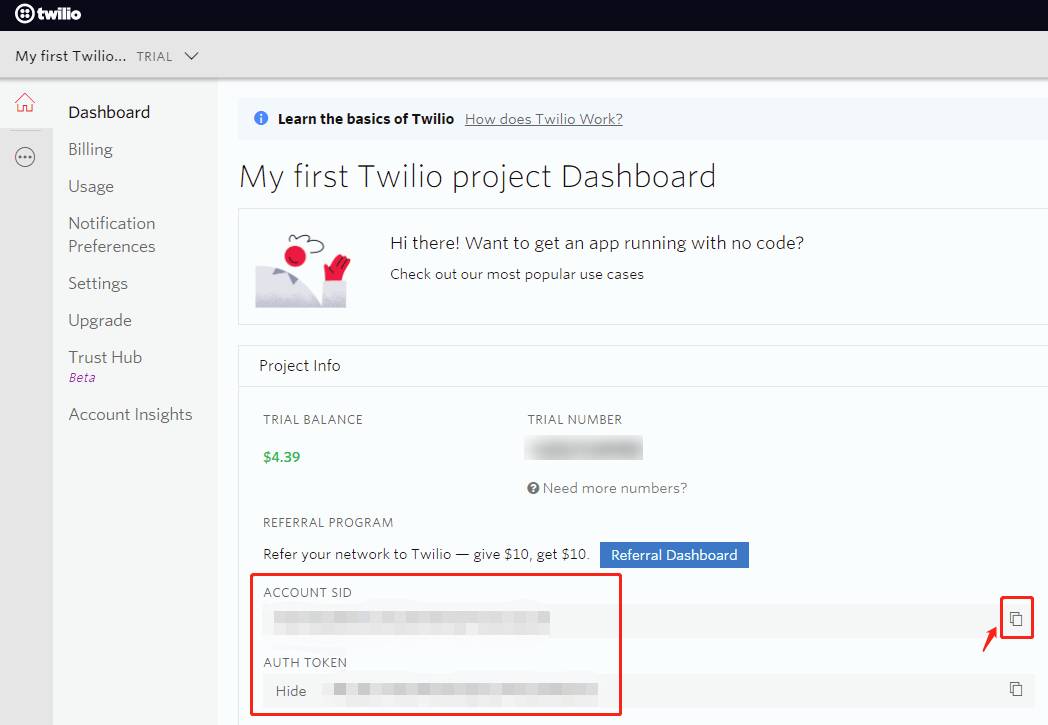

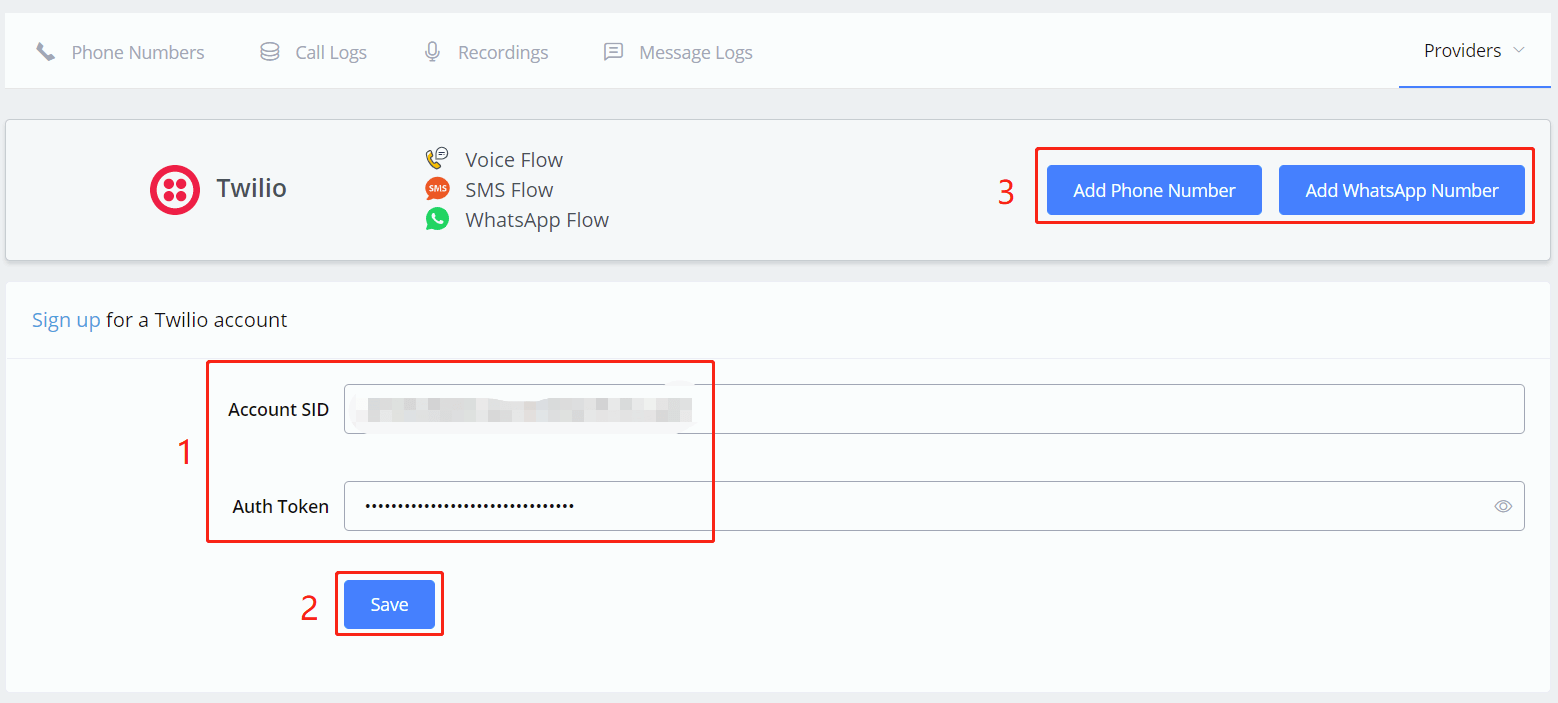

In your provider dashboard, click the little button on the right side to copy your "ACCOUNT SID" and "AUTH TOKEN" value back to OCP :
put your copied values in corresponding fields.
click "Save".

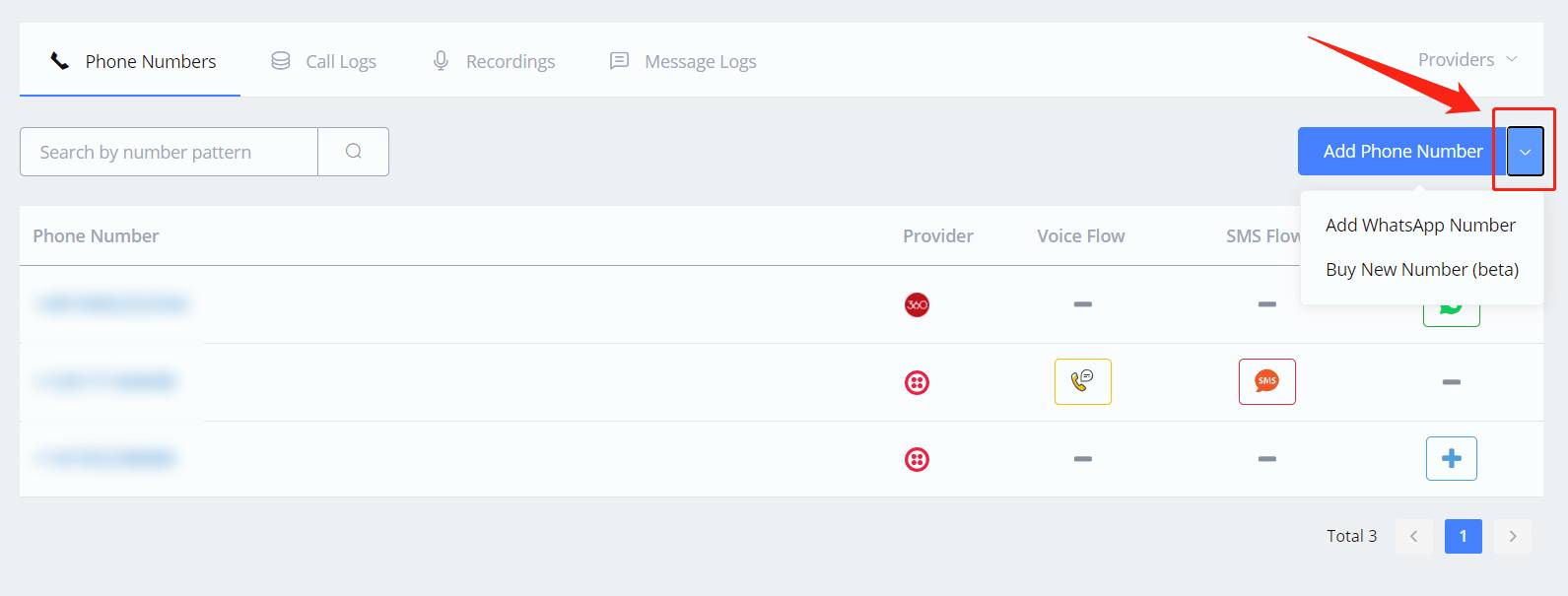

click "Add Phone Number" if you are building an SMS or Voice bot, otherwise, "Add WhatsApp Number".
More information click -> Twilio Docs
More information click -> 360Dialog Docs
More information click -> SignalWire Docs
More information click -> Message Media Docs
Add Numbers

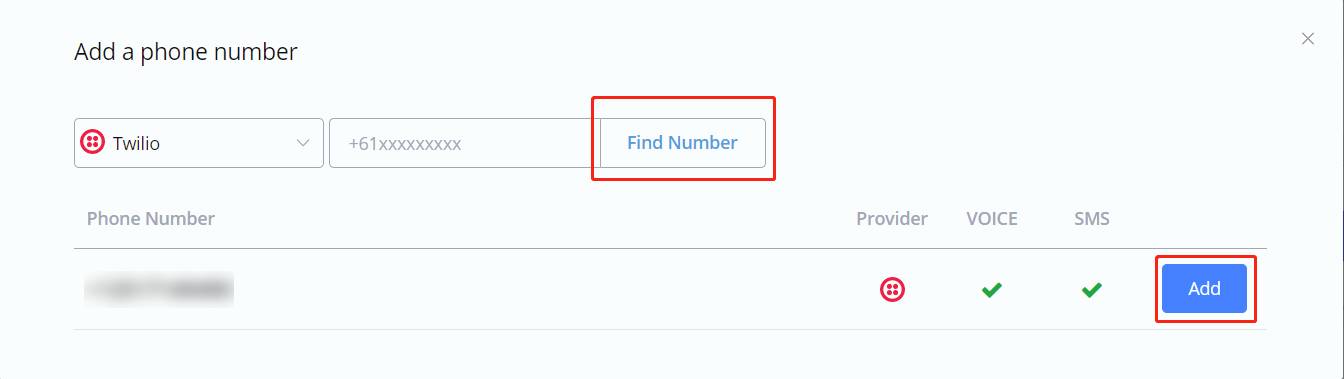

Click "Find Number", the system will search all the numbers that are under your provider account. Click "Add" to add one of the numbers.

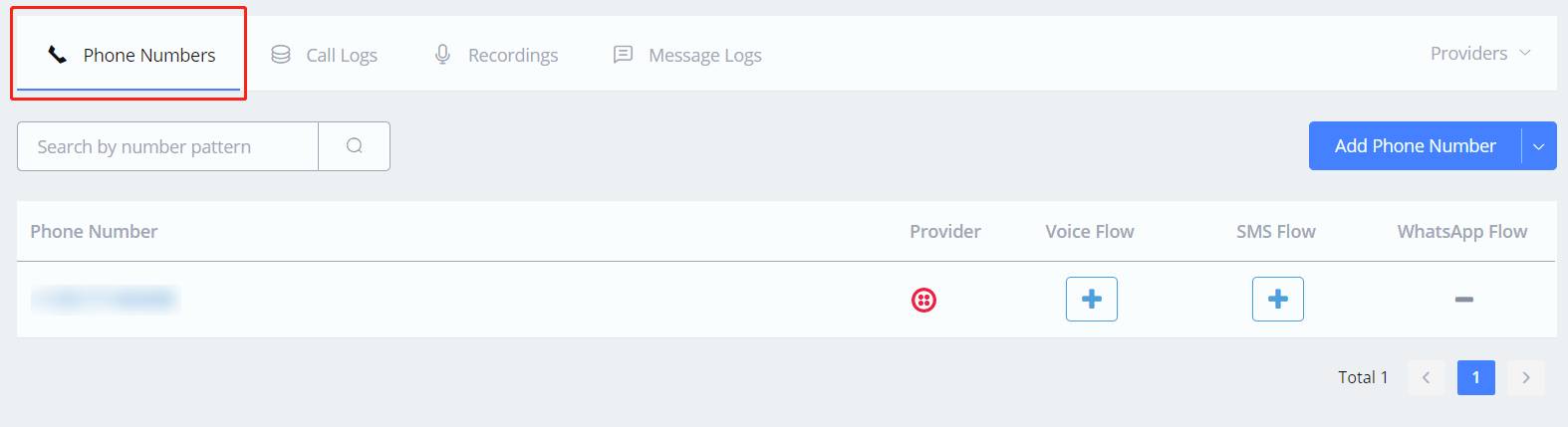

Thereafter, you are able to see all your connected numbers under the "Phone Numbers" page in "Integration".
TIP - If you would like to disconnect the WhatsApp / Voice / SMS flow with your number, or create a new flow for that number, copy the number and click "Release Number". Then your flow will be disconnected but stay safe in your "All Bots". Add the number again to create a new flow with it.

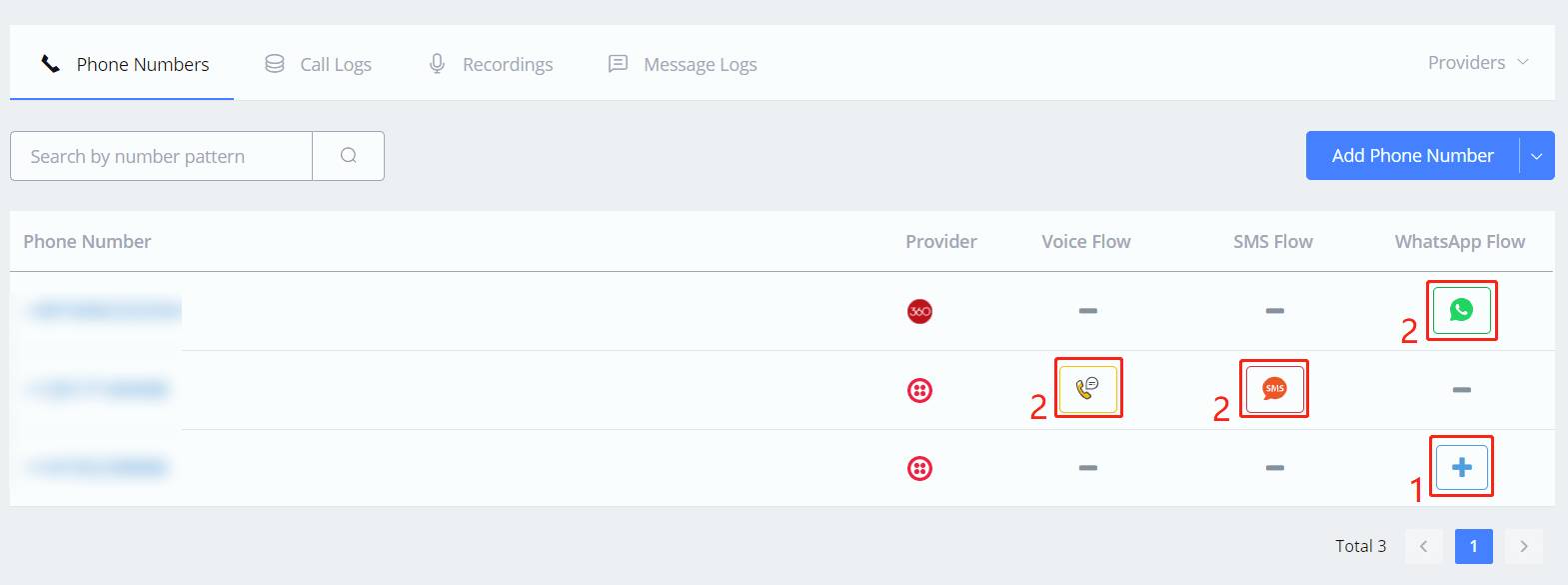

After adding phone numbers:
use the plus button to create new a flow.
button 2 is for "Open Flow" of this phone number.
Talk to WhatsApp/SMS/Voice Bot
WhatsApp - add the phone number as a new contact and send messages to it
Voice - call the phone number
SMS - send SMS messages to the phone number
Set up Webhook for Twilio WhatsApp Sender

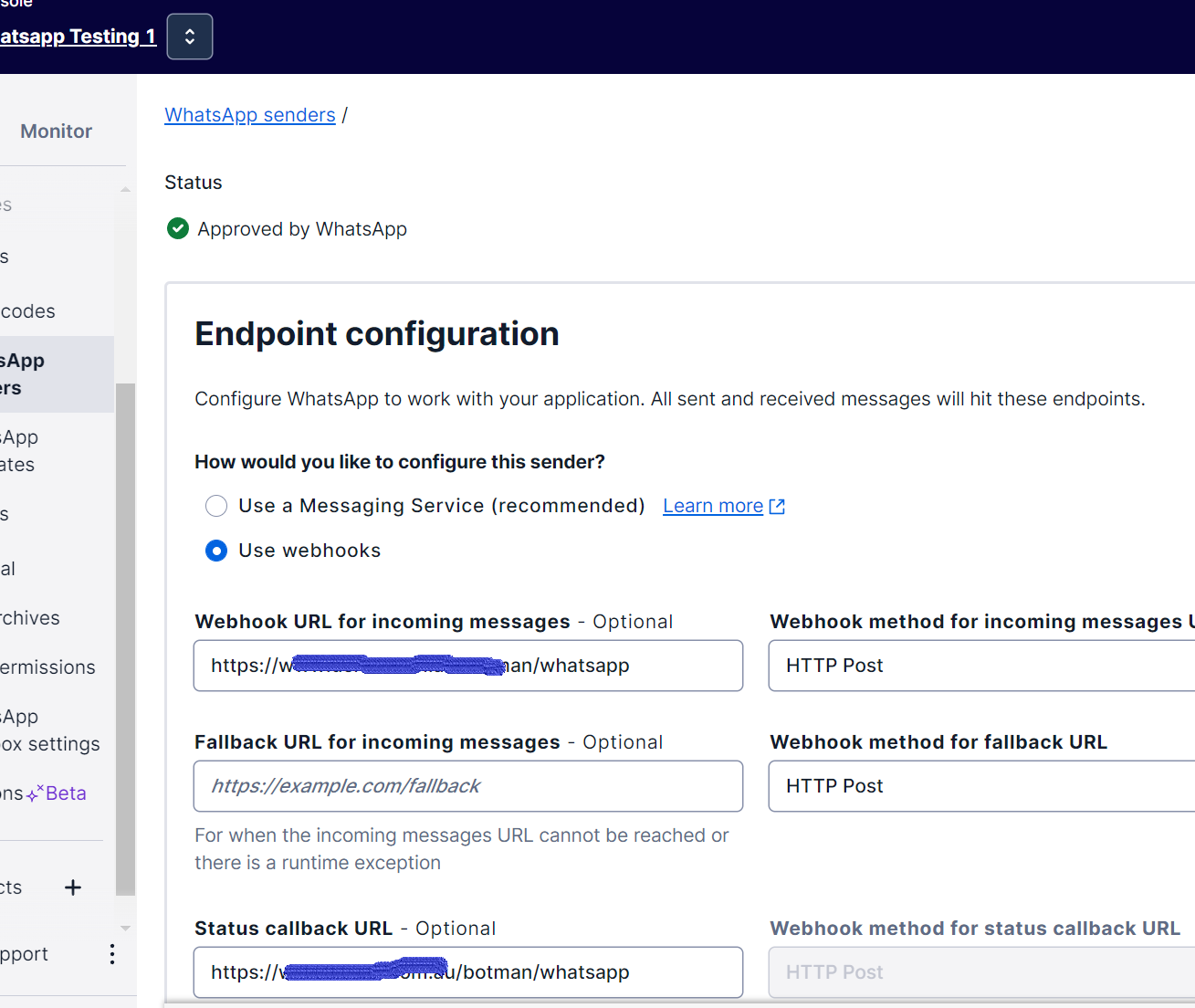

If you are using Twilio for WhatsApp channel as well, then you need to go to WhatsApp senders in Twilio, and then set up below webhook URL.
